PWB50 30” Semi Automatic 2D Wheel Balancer with Digital Display
£2,034.00 incl VAT£1,695.00 excl VAT
24 Months Warranty, free delivery + installation Included.
- Electronic wheel balancer
- Easy to read LED display
- Automatic 2D Data Entry via a single data entry gauge
- Fast & Easy Split function (FES) makes hiding adhesive weights a breeze
- More in the description…
DescriptionBack to Top

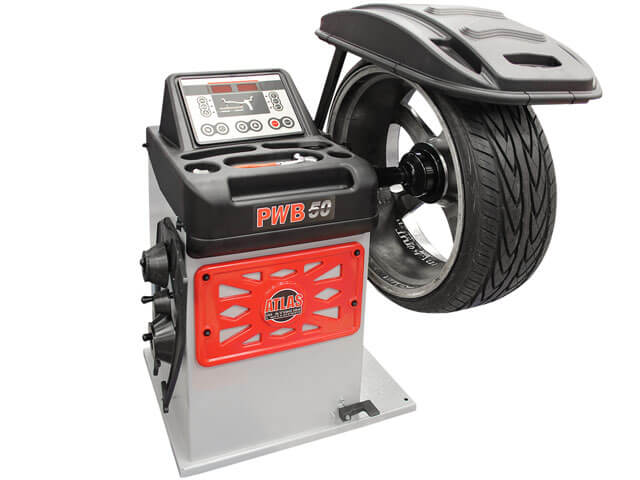

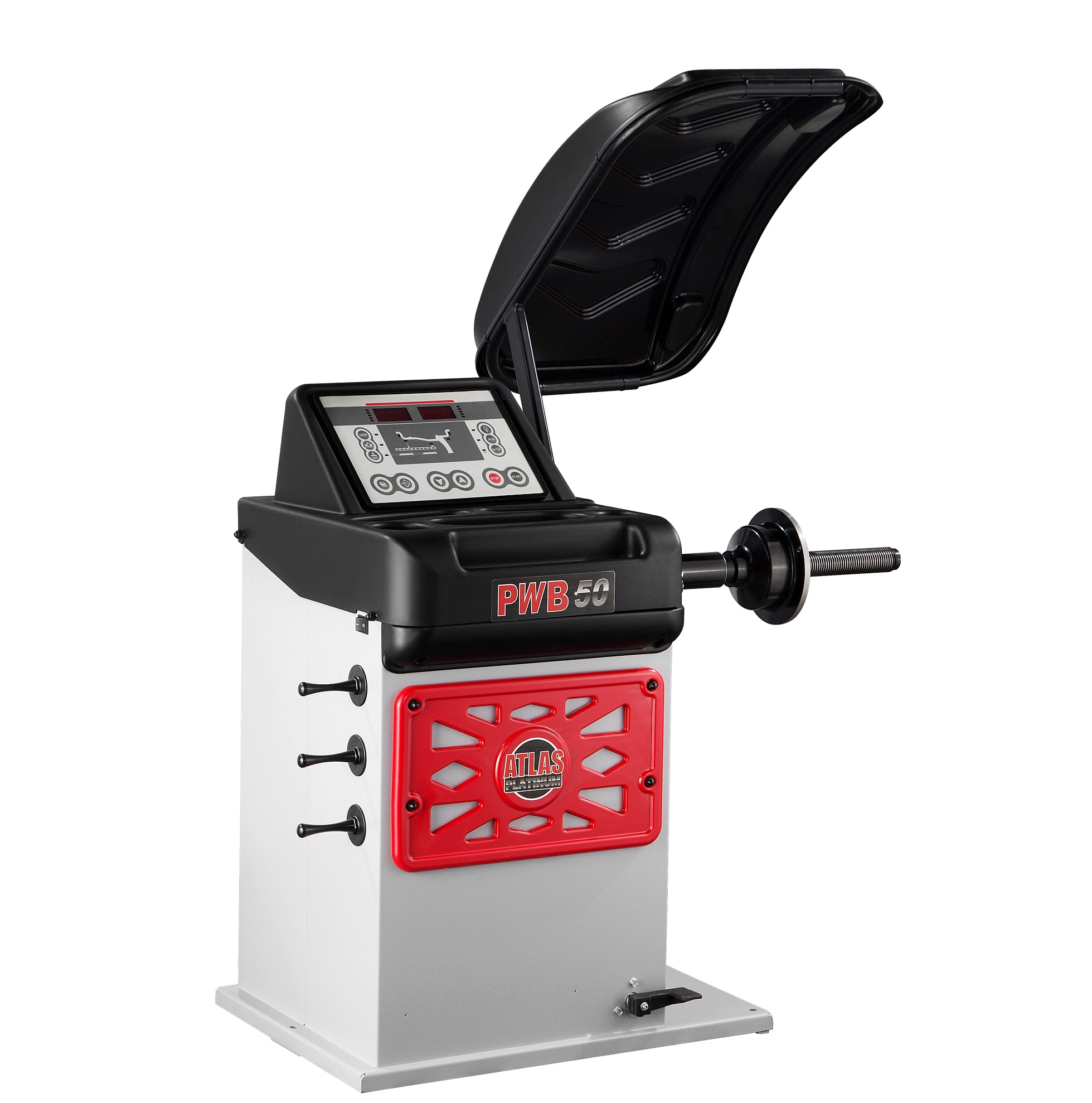

Introducing the new PWB50 30” Semi-Automatic 2D Wheel Balancer
Whether you have your own garage or work in one as a technician – Atlas Platinum is the equipment you need!
The PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. There are 4 separate ALU adhesive weight configurations as well as an ALU-S mode to assure direct and accurate dynamic adhesive weight applications.
The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the OWF, Opposite Weight Function, allows an operator to change the weight application position from 12 o’clock to 6 o’clock for convenient access when applying adhesive weights.
Optimization of tyre and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.
About the PWB50:

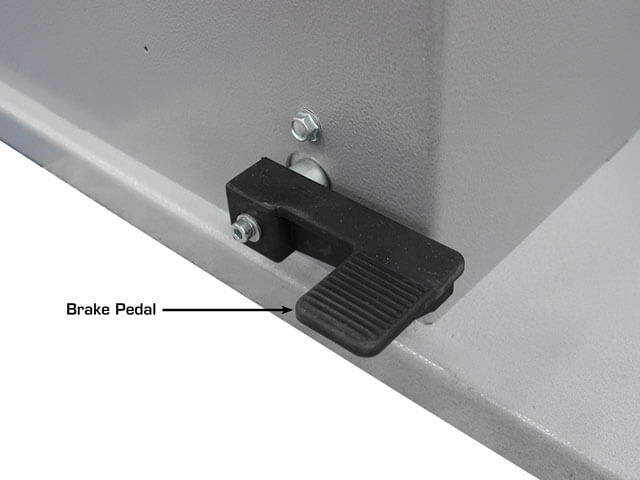

- Pedal brake
- OPTIMACH function
- The Fast & Easy Split function (FES)
- Special ALU-S program
- Automatic start and stop
- Complete with a wheel guard
- Truck adapter set optional
- Standard or Metric Display
- Static and dynamic balancing
- OPF function (Opposite Position)
- A huge combination of ALU programs
- NWN system (no wheel need system)
- 2D Data Entry (Diameter and Offset)
- A USB hub for firmware update through PC/Notebook

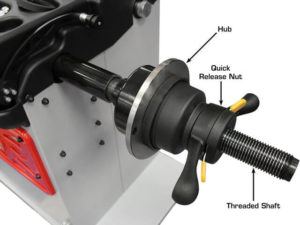

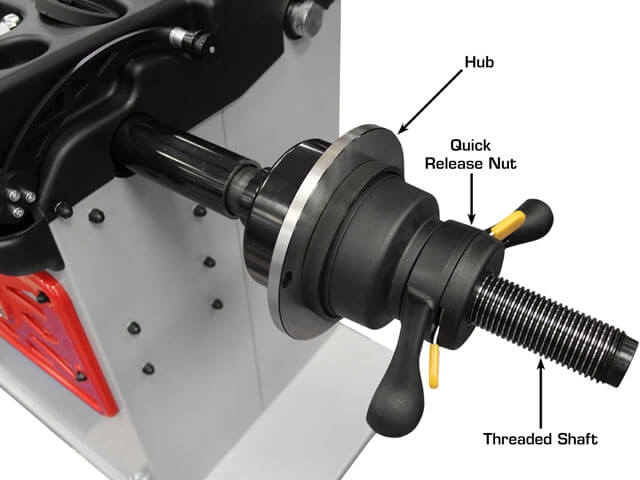

- Complete with cones and quick clamping ring nut
- An automatic measure of wheel diameter and distance.

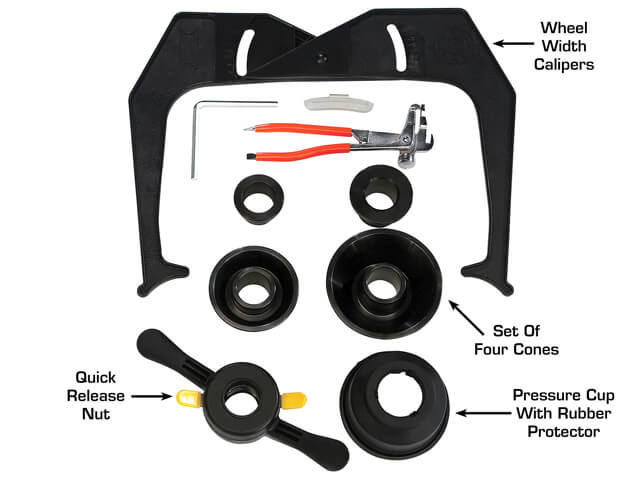

This wheel balancer is supplied with 4 balancing cones small, medium, large and extra-large along with a set of weight pliers the price includes delivery and 24-month parts and labor warranty.
*Weekly price reflects 3-year finance option. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.CALL NOW TO APPLY | 01527 883 580 APPLY FOR FINANCE ONLINE
Tech SpecsBack to Top
|max wheel diameter||43" (1100mm)|
|rim width||1 ½"-20"|
|max. wheel weight||165 lbs (75 kg)|
|balancing speed||130 r.p.m|
|power supply||220v 1ph|
|cycle time||7 seconds|
|shipping weight||225 lbs|
|Categories:||Semi Automatic Wheel Balancers, Wheel Balancers|
|Tags:||balancing machine, fully automatic wheel balancer|

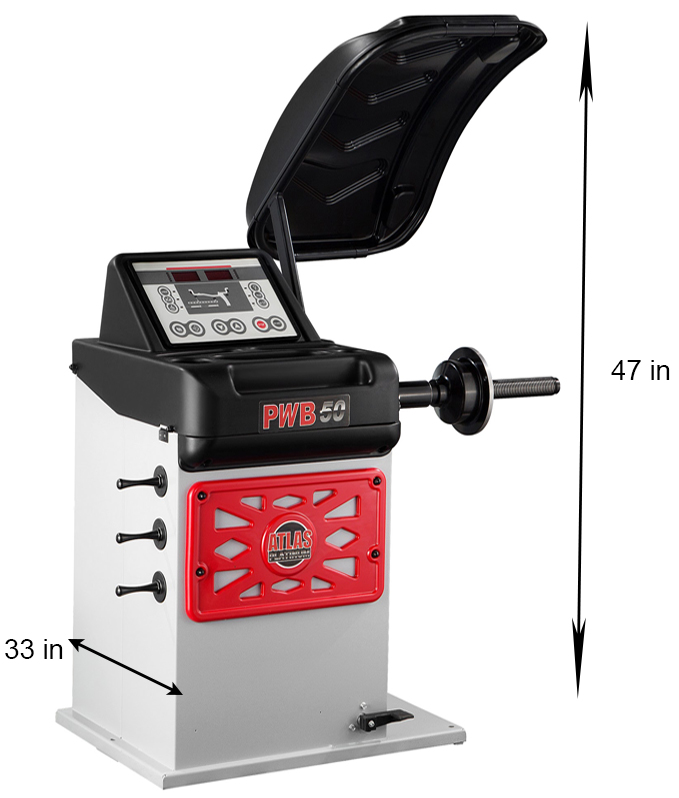

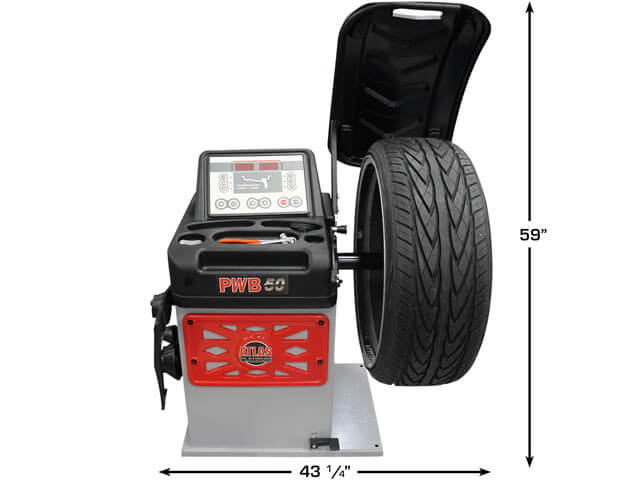

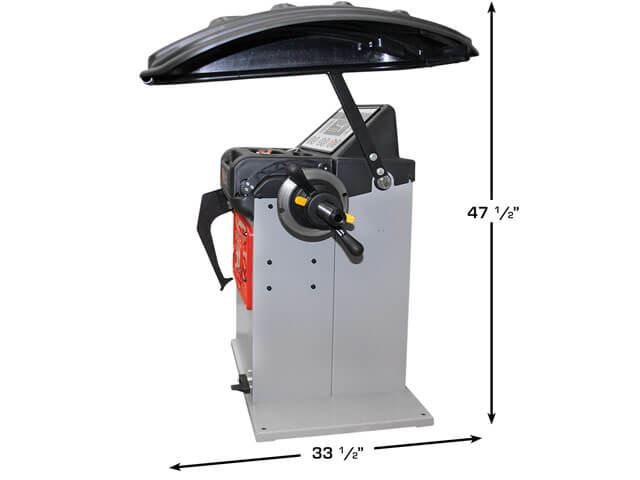

Equipment DimensionsBack to Top
WarrantyBack to Top
Atlas Platinum Warranty
Atlas Platinum garage equipment is supplied built and tested, with free delivery, ready for installation by one of our expert engineers. We are therefore pleased to offer our customers a 24 month parts and labour warranty. This comes as standard and no action is required.
Extended warranties are available on Atlas Platinum garage equipment, through Care Plans from our sister company, ISN Garage Assist.
DeliveryBack to Top
Equipment prices include delivery on an economy delivery service, unless otherwise stated.
Delivery will be charged on orders for tools and consumables if the total order value is under £50.00 (excluding VAT)
Click here for full details.
