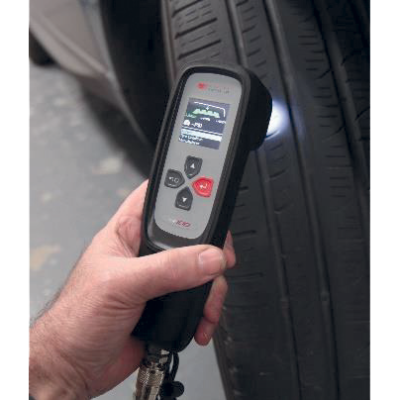

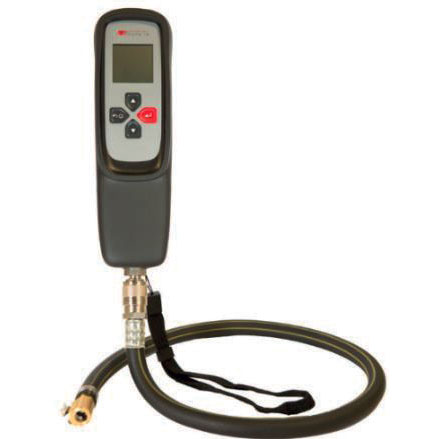

Bartec Tap 100 Integrated Handheld Tread Depth and Pressure Tool

Bartec Tap 100 Integrated Handheld Tread Depth and Pressure Tool

Modern workshops demand precision, speed, and absolute reliability when servicing vehicle tyres. The Bartec Tap 100 Integrated Handheld Tread Depth and Pressure Tool stands as the premier solution for technicians who need to perform rapid, high-accuracy inspections without the hassle of tangled cables or manual data entry. By consolidating two critical diagnostic functions into one streamlined device, this machine allows you to verify the condition of all four wheels in under sixty seconds. This incredible efficiency ensures that your service bay remains productive, reducing vehicle downtime and keeping your operation moving at peak performance.

Communication is seamless thanks to advanced integrated Bluetooth technology. You no longer need to tether your inspection equipment to bulky diagnostic consoles or secondary bridge tools. This wireless freedom allows the operator to move fluidly around the vehicle, accessing valve stems and tyre grooves from any angle. The data is processed instantaneously, providing an immediate snapshot of the tyre health. This creates a professional environment where technical accuracy meets high-speed workflow requirements, effectively turning a mundane safety check into a sophisticated service demonstration for your clients.

Efficiency and Intuitive Diagnostics

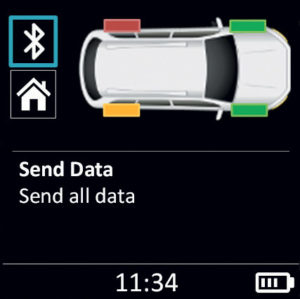

The visual feedback provided by this unit is designed to remove any ambiguity from the inspection process. A high-resolution colour screen acts as the primary interface, displaying status updates in an intuitive format that even the most casual customer can understand. By utilising a simple traffic light system, the screen instantly signals the legal and recommended replacement status of the tyre. This removes the guesswork from tyre advisory services, replacing verbal explanations with clear, colour-coded evidence that highlights exactly why a replacement might be necessary.

Integrated data management is a cornerstone of this system. The equipment is fully compatible with TPMS Desktop software, ensuring that your workshop can archive inspection logs, monitor long-term trends, and perform seamless software updates. By digitising the tread depth and pressure logs, you create a robust history for every vehicle that passes through your bay. This level of professionalism builds trust with your customer base, showing them that your shop uses the latest technology to ensure their safety on the road.

Operational Workflow and Mechanical Precision

Understanding the mechanical operation of this tool helps explain its remarkable speed. The system relies on a 15mm steel depth pin with a specially profiled end, engineered to meet strict regulatory standards while maintaining a low-profile footprint. When the technician engages the probe with the tyre tread, the pin moves with minimal resistance, ensuring that the measurement reflects the actual material wear without causing damage to the rubber.

During a typical workflow, the technician approaches the vehicle with the handheld device. They first attach the quick-release lightweight pressure hose to the valve stem. The mechanical seal is designed to prevent air leakage, which ensures that the pressure reading is accurate to the pound per square inch. Once the pressure is captured, the technician moves to the tread grooves. The built-in lamp illuminates the wear pattern and highlights any hidden damage like cuts or debris that might be invisible to the naked eye. This physical interaction between the tool and the rubber is designed for ergonomic comfort, reducing wrist strain and allowing for thousands of measurements throughout the day without fatigue.

Ergonomics and Workplace Safety

Occupational health is a priority in any modern workshop. Repetitive manual measurements can lead to musculoskeletal strain, especially when technicians are crouching or reaching into tight wheel wells for hours on end. This model addresses these physical stressors by keeping the tool lightweight and perfectly balanced. The ergonomic chassis rests comfortably in the palm of the hand, allowing for natural, fluid movements that minimise repetitive stress injuries.

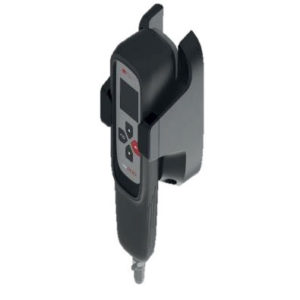

Furthermore, the wireless charging dock ensures that the tool is always ready for use without having to manage messy charging cables that pose a tripping hazard. By promoting an organised workspace, the tool helps maintain safety standards and keeps the shop floor clear of clutter. Compliance with vehicle safety regulations becomes a standard part of your process, as the device is calibrated to provide consistent results that meet strict international inspection criteria. This gives the workshop owner peace of mind, knowing that every check is performed to the highest possible standard.

Boosting Commercial ROI

Every minute spent on a tyre check represents a cost to your business. By reducing the diagnostic time to under a single minute per vehicle, you directly increase your daily throughput. Imagine the impact of performing twenty extra inspections per day without adding any additional labour hours. This increased volume leads to higher sales of premium tyre products and alignment services, allowing the equipment to pay for itself in a very short period.

The primary financial gain comes from the transparency provided to the customer. When you provide a clear, printed sample report that highlights tyre health, the customer is far more likely to agree to immediate remedial work. You stop losing sales due to uncertainty. By clearly identifying troubled tyres using professional data, you transform your workshop into an authority on safety. This is a critical investment in your shop’s reputation, as modern consumers favour businesses that show objective proof before proposing expensive maintenance.

Technical Specifications

Expand Your Capabilities

To maximise the value of your purchase, consider how this tool integrates with your existing inventory. We offer a range of accessories designed to help you get the most out of your diagnostics. If you are looking to upgrade your entire tyre service operation, you might want to look at our redback-motorcycle-adaptors-for-tyre-changer to broaden the types of vehicles you can service. The kit you receive today includes the primary tool, a pressure hose, a comprehensive user manual, the wireless wall charger, a USB cable, a protective pin cover, and a durable carrying case for site visits or mobile tyre fitting.

Apply for Finance

Invest in the future of your workshop today with our flexible payment options. We make it easy to acquire the latest diagnostic technology without impacting your immediate cash flow. Click here to apply for finance and take the next step in professionalising your tyre service department.

In summary, the Bartec Tap 100 Integrated Handheld Tread Depth and Pressure Tool is more than just a piece of hardware. It is a complete diagnostic ecosystem designed to increase your workshop’s speed, improve safety, and drive revenue through better customer communication. Do not let your competitors get ahead by relying on outdated, slow inspection methods. Choose the professional path and equip your technicians with the tools they need to succeed. Order yours today to transform the way you handle tyre service and diagnostics.

• High resolution colour display, sunlight readable
• Silicone rubber boot for added protection
• Maximum tread depth 12mm
• 0.01mm accuracy version for UK MOT testing – EINYA19863-0716026
• Pressure range 0-10bar (0-150PSI)
• Pressure accuracy +/-0.07bar (+-1PSI)
• Bluetooth for wireless data transfer
• Wireless charging
• Operating temperature 0 to 40°C
• Built in lamp for illuminating tyre surface
