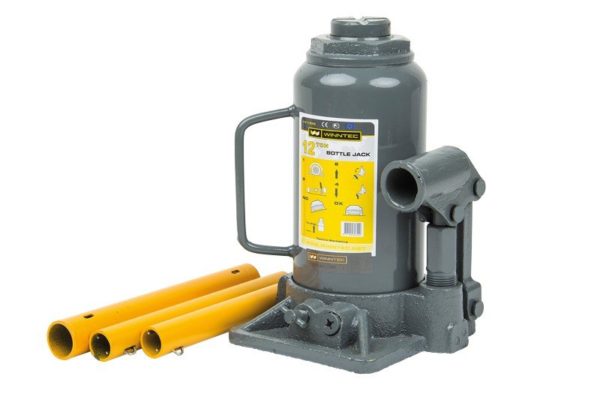

12 Ton Bottle Jack

12 Ton Bottle Jack

When you are managing a busy vehicle repair centre or a high-output maintenance facility, the quality of your lifting gear determines both your daily productivity and the safety of your technicians. This 12 Ton Bottle Jack stands at the forefront of hydraulic engineering, offering a robust solution for lifting heavy loads with absolute control and reliability. Designed to meet the most rigorous European standards, this piece of equipment represents a blend of durable metallurgy and refined mechanical function.

Engineers have prioritised structural integrity by incorporating a heavy-duty cast iron base. This foundation provides a wide footprint that ensures stability on uneven workshop floors while preventing the tipping hazards commonly associated with inferior lightweight alternatives. Whether you are dealing with commercial vans, light trucks, or industrial machinery, this tool provides the necessary clearance and lifting force to get the job done right the first time.

Engineering Excellence and Material Physics

The core of this hydraulic system relies on the basic principles of Pascal’s law. When you apply force to the pump linkage, the fluid pressure within the chamber forces the main ram to extend upward against the load. We have ensured that the main ram is polished to a mirror finish, which significantly reduces friction during the lifting cycle and prevents premature seal wear.

Because these machines are often exposed to harsh debris, road salt, or moisture in a garage environment, every moving part is treated to resist oxidation. The solid chromed pump linkage offers superior resistance to bending and shearing forces even when under the maximum rated load. By utilising high-grade cast iron for the base, the structure remains rigid and resistant to torsional flex, ensuring that the full twelve tonnes of capacity are directed vertically where they belong.

Overload protection is a critical safety feature integrated directly into the internal valve system. This mechanism prevents the operator from attempting to lift a load that exceeds the safe working limit of the hydraulic system. This creates a fail-safe environment where the machine stops operating if it senses an unsafe pressure spike, protecting both your expensive customer vehicles and your staff from mechanical failure.

Operational Workflow for Technicians

Operating this model is intuitive and requires minimal physical exertion from the technician. First, identify the manufacturer-designated lifting point on the chassis of the vehicle or the frame of the machine you intend to raise. Ensure that the ground surface is level and firm to maintain a stable lifting axis.

Once the base is positioned correctly, use the twist top feature to adjust the screw extension. This allows for precise height adjustments before you even begin pumping the handle. By threading the saddle upwards, you bridge the gap between the resting position of the ram and the contact point of the load, significantly reducing the amount of time required to engage the weight.

After contact is made, operate the pump handle with slow and steady rhythmic strokes. As the ram rises, the internal fluid pressure maintains the load height until you are ready to lower it. When the task is complete, use the release valve to gently bleed the pressure, allowing for a smooth and controlled descent of the vehicle. This fluid-controlled motion eliminates jerky movements that could otherwise displace a load or cause damage to delicate undercarriage components.

Ergonomics and Safety Compliance

Workplace health and safety regulations demand that employers provide tools that minimise the risk of musculoskeletal injuries. Using manual leverage tools that require excessive bending or over-exertion often leads to long-term back strain or fatigue. This hydraulic tool does the heavy lifting for your team, allowing them to focus on the precision of the repair rather than the physical struggle of vehicle positioning.

By investing in a piece of equipment that is tested to the latest European standards, you are ensuring that your workshop meets the highest benchmarks for safety. The risk of sudden pressure loss or structural collapse is virtually eliminated through the use of high-quality internal seals and the protective overload valve. Protecting your staff from preventable injuries reduces downtime and fosters a culture of professionalism and care.

Maximising Workshop ROI

Efficiency in a commercial workshop is measured in minutes per job. If your technicians are struggling with outdated or unreliable lifting equipment, you are losing money on every single vehicle that enters your bay. A high-quality hydraulic lifter enables your team to transition from arrival to repair status in significantly less time.

The financial case for this unit is simple. With a 3 year , you are not just buying a tool, but securing a long-term asset that reduces the need for constant repairs or replacements. By minimising the time spent on vehicle setup and ensuring that you have the capacity to handle heavier vehicles, you increase your throughput capacity. More cars through the workshop means more revenue at the end of the month, providing a rapid return on your initial investment.

Accessories and Versatility

While this tool excels as a standalone lifter, its versatility is expanded when used in conjunction with other shop equipment. Many technicians choose to pair this jack with heavy-duty axle stands to ensure that the load remains supported during extended repair procedures. Furthermore, if you are working on specialist motorcycle frames or uneven machinery, consider checking out our specialised lifting adaptors which can help stabilise unique contact points.

Proper maintenance is key to the longevity of your hydraulic tools. Always ensure that the oil levels are checked periodically and that the exterior is wiped down after use in dusty environments. This level of preventative care will ensure the tool performs at its peak for many years to come.

Technical Specifications

Apply for Finance

We understand that equipping a workshop is a significant capital expenditure. To help manage your cash flow, we offer flexible payment solutions for professional users. Please apply for finance here to view our available options, including low-interest terms and monthly instalment plans tailored to your business needs.

Ordering is simple and efficient. Please allow 3-5 working days for delivery to your workshop door. We ensure all equipment is securely packaged to prevent damage during transit, so you receive your unit in factory-perfect condition. Invest in your workshop today and experience the difference that professional-grade hydraulic equipment makes to your daily operations.

General Info

Winntec products carry a 3 Year Warranty, which covers faulty materials, workmanship, and normal wear and tear. The warranty is only valid if the necessary recommendations on safety, operation, service, and routine maintenance have been followed. For further details please click here (opens in new window): See pdf

For further Winntec warranty details please click here.

Note: Consumable items such as wheels, castors, circlips, rubber pads, and handle grips etc. are not covered by the Winntec 3 Year Warranty, as the replacement intervals for these consumables depend on the extent to which the product is used and how well it is maintained. They can be considered as equivalent to brake pads, wipers, bulbs etc. on a new car.
