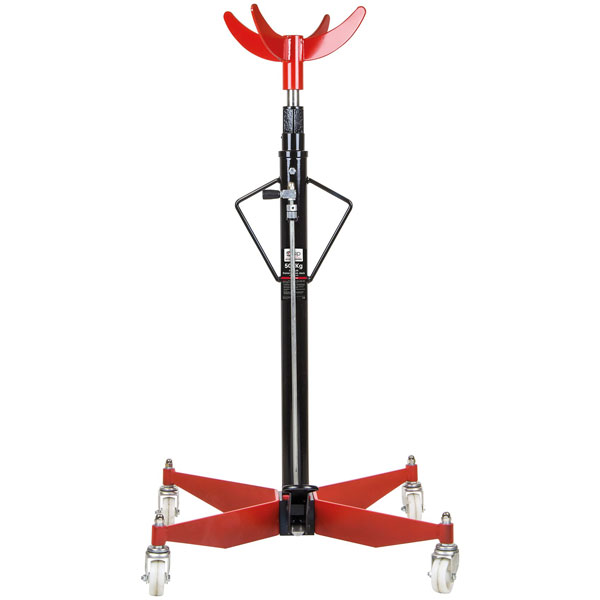

500kg Quick-lift Heavy Duty Transmission Jack

500kg Quick-lift Heavy Duty Transmission Jack

In the high-pressure environment of a professional automotive workshop, every second spent maneuvering heavy components directly impacts your bottom line. The 500kg Quick-lift Heavy Duty Transmission Jack is engineered specifically to eliminate the bottleneck of gearbox removal and installation. By integrating rapid-action hydraulics with a stable, high-capacity frame, this equipment serves as the backbone for any technician dealing with complex drivetrain assemblies.

Whether you are performing routine clutch replacements or complete transmission overhauls, the physics behind this jack are designed to provide absolute control. It turns a traditionally laborious two-person task into a precise, manageable operation that enhances both safety and shop throughput. Built for durability, this unit stands up to the rigours of daily use, ensuring your investment pays dividends through increased efficiency and reduced downtime.

The Mechanics of Rapid Transmission Servicing

At the heart of this machine lies a high-performance hydraulic system that differentiates it from standard workshop jacks. The mechanical advantage is achieved through a specialized foot-operated pump that drives the cradle upwards with a single, fluid motion. This is not merely a convenience feature, it represents a significant shift in how mechanics interact with vehicle sub-assemblies.

Engineered for Precision and Stability

Stability is the most critical factor when working with heavy, unbalanced loads like gearboxes and transaxles. This unit incorporates a wide-base footprint that effectively distributes the mass across the workshop floor. By lowering the centre of gravity during the lift, it prevents the wobbling or tipping risks often associated with inferior tools. This mechanical stability ensures that the transmission remains perfectly aligned with the engine block during the crucial moments of bolt alignment and mounting.

• The quick-lift mechanism utilizes a high-leverage pedal design that requires minimal physical effort from the operator to reach the necessary lifting points.
• The heavy-duty steel construction is reinforced at all load-bearing stress points to prevent structural flex under the maximum 500kg load capacity.
• Precision-engineered seals within the hydraulic cylinder ensure that the pressure is maintained throughout the entire servicing process without any drifting or sudden loss of height.
• The integrated spring-loaded release valve allows for incremental descent, providing the operator with the finesse needed to seat a transmission housing without damaging delicate splines or mating surfaces.

Operational Workflow for Maximum Efficiency

To operate this equipment, a technician begins by positioning the base under the vehicle once it is secured on a two-post lift. The operator utilizes the pedal to engage the primary lifting ram, which quickly brings the cradle into contact with the underside of the transmission. Once contact is established, the operator can make fine adjustments to the angle of the cradle to match the gearbox mounting surface perfectly.

By effectively removing the manual strain of supporting the weight of the gearbox, the technician can focus entirely on the mechanical fasteners and electrical connectors. This methodical approach minimizes the risk of accidental slips that often lead to expensive damage to bell housings or transmission casings. After the component is secured to the cradle, the downward motion is controlled via the valve, ensuring a smooth transition from the vehicle chassis to the transport trolley or workbench.

Ergonomics and Long-Term Workplace Safety

Musculoskeletal injuries are an unfortunate reality in the automotive repair industry. Relying on makeshift lifting solutions or manual handling for gearboxes is a major cause of back and shoulder strain among mechanics. This transmission jack is a proactive investment in workplace health. By providing a mechanical support system that handles the bulk of the physical load, you are directly reducing the risk of repetitive strain injuries for your team.

Furthermore, the design of the heavy-duty castors ensures that even when loaded with half a tonne of steel, the entire assembly remains mobile and easy to navigate across concrete workshop floors. This effortless movement allows for better workshop organisation, as heavy components can be moved rapidly to a secondary cleaning station or assembly bench without the need for additional lifting equipment.

Commercial ROI and Workshop Throughput

In a commercial garage, your profit is dictated by your cycle time. The speed at which you can complete a transmission job directly determines how many vehicles you can service in a standard work week. This 500kg Quick-lift Heavy Duty Transmission Jack provides an immediate return on investment by shaving valuable time off every lift cycle.

Beyond speed, the protection of customer assets is paramount. Dropping or misaligning a transmission can cost thousands in replacement parts and damage your shop’s reputation. This tool acts as an insurance policy for every gearbox job you undertake, guaranteeing that the weight is managed consistently and safely throughout the entire repair sequence.

Expanding Your Capabilities

No workshop is complete without the right accessories to support specific vehicle types. While this unit is versatile out of the box, we recommend pairing it with specialised adaptors if you frequently work on motorcycles or non-standard drivetrain configurations. You can browse our full range of workshop equipment accessories to ensure you have the correct interface for every job that enters your bay.

Technical Specifications

Apply for Finance

We believe that high-quality tools should be accessible to every growing business. Our flexible payment options allow you to invest in this 500kg Quick-lift Heavy Duty Transmission Jack without compromising your immediate cash flow. You can apply for finance through our secure online portal to receive an instant decision and get your workshop equipped with the industry-leading tools you need today.

Investing in the right lifting solutions is the hallmark of a professional garage. With its combination of rapid-lift technology, heavy-duty build quality, and superior safety features, this jack is the ultimate companion for your transmission servicing needs. Contact our sales team if you have questions regarding compatibility or if you require assistance with your order, and ensure your workshop is prepared for the demands of modern vehicle maintenance.
