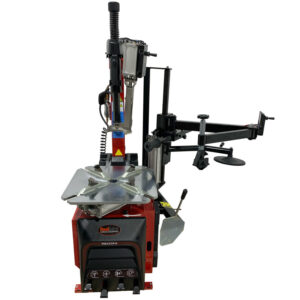

Atlas TC320MAX 26” Leverless Fully Automatic Tyre Changer with a Twin Assist Arm System

Atlas TC320MAX 26” Leverless Fully Automatic Tyre Changer with a Twin Assist Arm System

In the modern automotive service centre, precision and speed represent the difference between a profitable workshop and a stagnant one. The Atlas TC320MAX 26” Leverless Fully Automatic Tyre Changer with a Twin Assist Arm System offers a sophisticated solution for tyre bays facing the increasing complexity of contemporary wheel and tyre assemblies. This unit represents a leap forward in engineering, specifically designed to eliminate the physical strain associated with mounting low profile and run-flat tyres.

By integrating a high-performance leverless mounting system, this equipment removes the need for traditional tyre levers. This advancement effectively eliminates the risk of bead damage during the demounting and mounting process, providing an essential layer of protection for expensive alloy wheels. Whether you are managing light commercial vehicles or high-performance passenger cars, this machine serves as a reliable workhorse for your daily operations.

Mechanical Engineering and Structural Integrity

The core of this model is built on a foundation of heavy duty structural steel that ensures maximum rigidity during operation. When a technician applies force to remove a stubborn tyre bead, the frame must remain absolutely stable to ensure that the pneumatic forces do not cause unwanted flex or vibration. This machine utilises a robust rear tilting column design, which allows for consistent, reliable tensioning when working with large or heavy wheel assemblies.

The pneumatic systems embedded within this equipment are calibrated to handle high pressure without sacrificing sensitivity. The mechanical advantage provided by the twin assist arms ensures that the bead remains deep within the wheel drop centre throughout the entire cycle. By maintaining this critical positioning, the machine reduces the torque required by the turntable, ensuring the motor operates well within its design parameters for a significantly longer lifespan.

Operational Workflow and Technician Efficiency

Efficiency in the workshop relies on the seamless interaction between the operator and the machinery. To use this system, the technician first secures the wheel using the high-grip clamping jaws, which are protected by non-marring plastic covers. Once the wheel is locked into place, the leverless mechanism is engaged at the rim edge to gently lift the tyre bead over the flange without the traditional lever-prying motion that often causes rim damage.

• The operator uses the foot-pedal array to control the turntable rotation and pneumatic clamping.
• The twin assist arm system is lowered to press the tyre bead into the drop centre of the rim.
• The pneumatic rear column tilts the head into the perfect working position every single time.
• Manual effort is virtually eliminated during the difficult final stages of run-flat tyre installation.

By streamlining this workflow, your technicians can move from one tyre to the next with minimal exertion. This reduction in the physical handling requirements allows your staff to focus on quality control and safety checks, ensuring every vehicle leaves the bay in perfect condition.

Ergonomics, Health, and Workplace Safety

Workplace injury remains a significant concern in the automotive sector, with musculoskeletal strain from heavy lifting and repetitive motions being common issues. By adopting this leverless technology, you directly mitigate the risk of injury for your team. The mechanical assist arms take the weight of the tyre and the force required to seat the bead, which removes the need for technicians to use their body weight or awkward leverage techniques.

Furthermore, the ergonomic layout of the controls reduces the amount of bending and reaching required during the process. When a workshop prioritises the health of its workforce through better equipment, it naturally sees a decrease in downtime related to strain and fatigue. A safer working environment is inherently more productive, allowing your shop to maintain high output levels without compromising the wellbeing of your valued employees.

Commercial Returns and Workshop Throughput

Every minute spent struggling with a difficult tyre is a minute that cannot be billed to another job. The Atlas TC320MAX is designed specifically to slash the time required per wheel, which is a major factor when you are dealing with premium or run-flat assemblies that typically take twice as long to change on older equipment. By increasing your daily throughput, the machine pays for itself through increased billable hours.

Additionally, the risk of wheel damage is a serious financial liability. Using traditional lever methods often leads to chips or scratches on expensive custom alloy wheels, which can result in costly compensation claims or customer dissatisfaction. By using this leverless equipment, you provide a professional service that guarantees the integrity of the customer’s assets, fostering loyalty and word-of-mouth recommendations that drive further business.

Professional Accessories and Versatility

To ensure this machine remains the cornerstone of your tyre shop, it comes equipped with a comprehensive set of accessories. The alloy wheel protection kit is an essential addition, providing the confidence needed to handle luxury or aftermarket wheels. You will also find that the pre-filter and oil lubricator work to keep the pneumatic components in peak condition, reducing the frequency of maintenance cycles.

For those looking to expand their capabilities further, we offer specialised components to handle unique automotive challenges. You may wish to explore our range of motorcycle adaptors if you intend to service two-wheeled vehicles. These modular additions expand the utility of your setup, allowing you to capture a broader market segment without needing to invest in multiple distinct pieces of equipment.

Technical Specifications

Feature	Specification
Maximum Wheel Diameter	26 Inches
Construction	Heavy Duty Steel
Column Design	Pneumatic Rear Tilting
Assist System	Twin Assist Arms
Control System	Fully Automatic
Protection	Alloy Wheel Protection Kit Included
Service Access	Front Panel Access

Apply for Finance

Weekly price reflects 3-year finance option. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.

CALL NOW TO APPLY | 01527 883 580

APPLY FOR FINANCE ONLINE

Investing in the Atlas TC320MAX is a commitment to quality, efficiency, and safety. Whether you are upgrading an existing tyre bay or outfitting a new workshop, this machine offers the perfect balance of performance and reliability. Contact our team today to learn how this solution can transform your daily operations and secure your workshop’s place as a leader in automotive service.

rim clamping range external	12″ – 24″
rim clamping range internal	14″ – 26″
max. tyre diameter	1100 mm
max. tyre width	380mm
bead breaker cylinder force	3000kg
inflating pressure device max	3.5 bar (50 psi)
motor power	0.75 220v 1ph
rotating speed	7rpm

 Three Position Clamping Jaws
Note: All 4 of the clamping jaws must be set to the same position to ensure correct clamping of the rim.

General Info

Brand	Atlas Equipment
Warranty	12 months parts & labour.

Atlas Equipment Warranty

Atlas tyre changers & wheel balancers are supplied built, tested and ready for immediate self-installation.

We are therefore pleased to offer our Atlas tyre changer or Atlas wheel balancer customers a 12 month parts and labour warranty. This comes as standard and no action is required.

To find out more about Atlas Equipment call our experts now on 01527 883 580.
