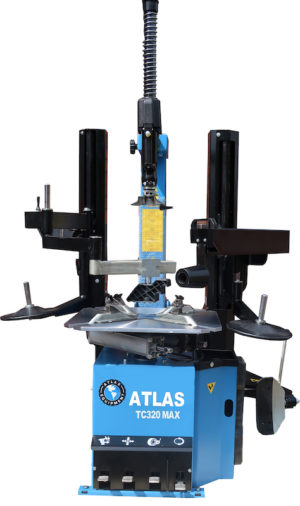

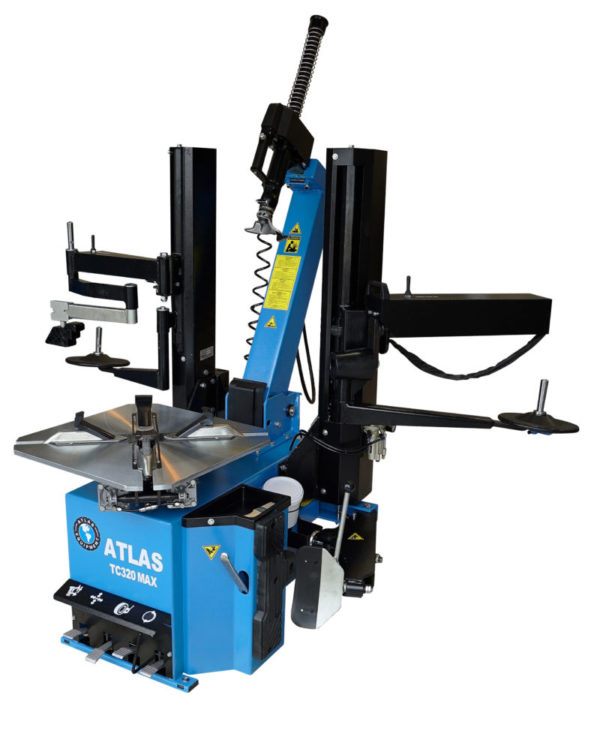

Atlas TC320MAX 26” Fully Automatic Tyre Changer with a Twin Assist Arm System

Atlas TC320MAX 26” Fully Automatic Tyre Changer with a Twin Assist Arm System

The modern workshop requires equipment that balances raw power with delicate precision. Introducing the Atlas TC320MAX 26” Fully Automatic Tyre Changer with a Twin Assist Arm System. This machine represents the pinnacle of garage efficiency for professionals who demand reliability when handling challenging wheel assemblies.

Designed for busy environments, this equipment eliminates the manual struggle associated with changing modern tyre varieties. Whether you are dealing with standard steel rims or sophisticated alloy wheels, the pneumatic systems integrated into this unit ensure that every job is completed with maximum performance and minimal physical exertion for the operator.

Mastering Mechanical Physics and Structural Integrity

At the core of this machine lies a robust pneumatic architecture that manages intense physical forces. When mounting or demounting, the lateral pressure exerted on the bead can cause significant stress. This model utilises a reinforced chassis to prevent structural flex, ensuring that the mounting head remains perfectly aligned with the wheel rim throughout the entire duration of the cycle.

The mechanical leverage provided by the twin assist arms creates a controlled environment for stiff sidewalls. By applying consistent, distributed force at the exact point of need, the machine manages the mechanical tension of run-flat tyres without damaging the expensive wheel finish. This structural stability means your team can handle high-torque applications with confidence, knowing the hardware is built to withstand rigorous daily use.

Step by Step Operational Workflow

Operating this advanced equipment follows a streamlined, intuitive process designed to reduce set-up times. The pneumatic rear tilting column allows the technician to move the tower out of the way quickly, providing clear access to the turntable.

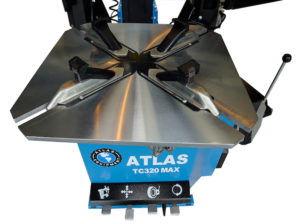

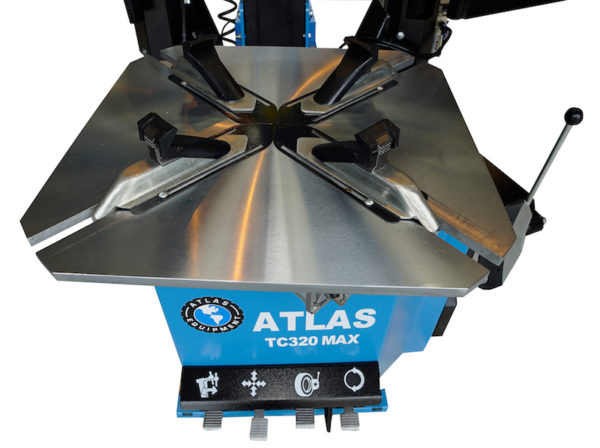

• Position the wheel securely onto the turntable, ensuring the clamping jaws are set to the correct diameter.
• Engage the pneumatic rear tilting column to lock the mounting head into the ideal vertical position for the specific rim width.
• Utilise the twin assist arms to depress the sidewall of the tyre into the drop centre of the rim, which is essential for low profile tyres.
• Operate the foot pedals to rotate the table while the mounting head guided by your inputs safely lifts the bead over the rim flange.
• Release the assist arms and use the integrated bead breaker to detach the remaining bead seal effortlessly.

Ergonomics, Safety, and Long Term Health

In a high-volume garage, operator fatigue is a leading cause of workplace accidents and slow output. This tyre changer is engineered to function as an extension of the technician, drastically reducing the need for heavy lifting and awkward manual manipulation of stiff tyre beads.

By automating the most strenuous parts of the process, such as handling heavy light commercial wheels or stubborn run-flat tyres, you protect your staff from repetitive strain injuries. The ergonomic layout of the controls ensures that the operator maintains a healthy posture during the workflow. Investing in this technology demonstrates a commitment to a safer working environment, which in turn reduces sick leave and fosters a more sustainable workplace culture.

Driving Commercial ROI and Workshop Throughput

Time is the most valuable commodity in any automotive repair centre. This machine is designed to pay for itself by dramatically increasing the number of tyre changes your shop can perform per day. Because the setup process is so rapid, your technicians spend less time wrestling with wheels and more time completing additional billable repairs.

Beyond speed, the protection of customer assets is a vital business consideration. The included alloy wheel protection kit ensures that you deliver every vehicle back to the customer without scratches or damage to their rims. This level of professional service builds brand loyalty and secures repeat business. By choosing this solution, you are essentially investing in a faster, more reliable, and higher quality service offering that sets your garage apart from the competition.

Key Features and Functionality

This tyre changer is built to accommodate a vast range of vehicle types, from standard passenger cars to complex light commercial wheels. The front access panel is a major benefit, as it allows your maintenance team to perform routine checkups and internal adjustments without disassembling the entire machine. This focus on serviceability means your downtime is kept to an absolute minimum.

• The machine handles wheels up to 26 inches with ease, ensuring wide compatibility across your customer base.
• Double assist arms provide the necessary support for managing run-flat and low profile tyres without the risk of sidewall tearing.
• A pneumatically controlled rear tilting column saves precious minutes during the mounting sequence.
• The integrated pre-filter and oil lubricator extend the lifespan of internal pneumatic components by ensuring clean, lubricated air circulation.

Expanding Your Capabilities

While the standard kit covers the vast majority of workshop requirements, you may wish to further expand your service range. If you provide specific services for motorcycles or performance vehicles, you should look into compatible Redback motorcycle adaptors for tyre changer setups. These add-ons seamlessly integrate with the existing turntable, allowing you to diversify your revenue streams without needing to purchase entirely separate equipment.

Technical Specifications

Feature	Specification
Maximum Wheel Diameter	26 Inches
Operating System	Fully Automatic Pneumatic
Assist Arm System	Twin Arm Configuration
Bead Breaking Force	2500 kg
Motor Power	1.1 kW
Air Supply Requirement	8 to 10 Bar
Weight	380 kg

Included Accessories

Your purchase includes everything necessary to begin operations immediately upon arrival. You will receive a comprehensive operation manual alongside a routine maintenance guide to keep the machinery in peak condition. The package also features a high-grade 18 inch tyre lever, a pre-filter, and an oil lubricator.

To ensure your customers receive perfect service every time, we have included an alloy wheel protection kit. This set includes plastic inserts for the metal mounting head, a protective cover for the tyre lever, a set of four clamping jaw covers, and a durable plastic bead breaker cover. These small additions prevent metal on metal contact, which is the primary cause of damage to high-end alloy wheels during the tyre fitting process.

Apply for Finance

Weekly price reflects 3-year finance option. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.

CALL NOW TO APPLY | 01527 883 580

APPLY FOR FINANCE ONLINE

Equip your workshop with the power and precision of the Atlas TC320MAX. With its combination of pneumatic efficiency, robust construction, and protective accessories, it is the ultimate tool for the professional tyre technician. Contact our team today to learn more about how this machine can transform your daily throughput.

rim clamping range external	12″ – 24″
rim clamping range internal	14″ – 26″
max. tyre diameter	1100 mm
max. tyre width	380mm

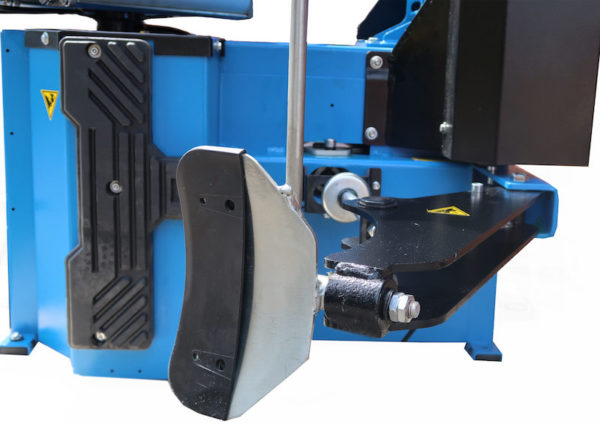

bead breaker cylinder force at 10 bar	3000kg
inflating pressure device max	3.5 bar (50 psi)
motor power	0.75 220v 1ph
rotating speed	7rpm

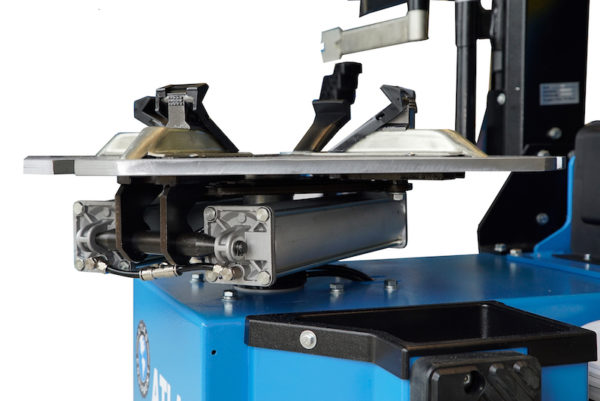

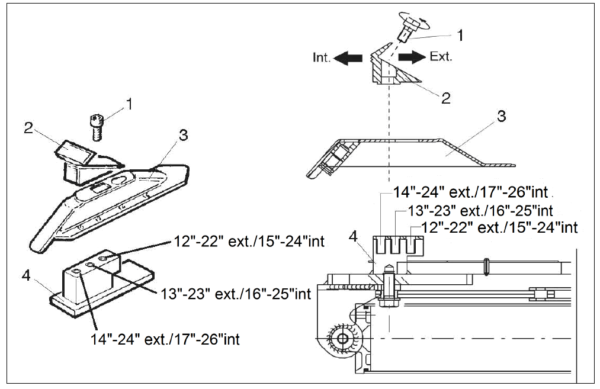

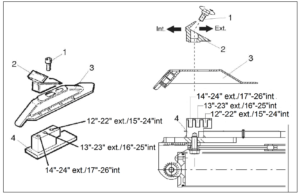

Three Position Clamping Jaws
Note: All 4 of the clamping jaws must be set to the same position to ensure correct clamping of the rim.

General Info

Brand	Atlas Equipment
Warranty	12 months parts & labour.

Atlas Equipment Warranty

Atlas tyre changers & wheel balancers are supplied built, tested and ready for immediate self-installation.

We are therefore pleased to offer our Atlas tyre changer or Atlas wheel balancer customers a 12 month parts and labour warranty. This comes as standard and no action is required.

To find out more about Atlas Equipment call our experts now on 01527 883 580.
