Atlas WB49 Wheel Balancer with 3D arm

Atlas WB49 Wheel Balancer with 3D arm

Achieving perfect wheel balance is the cornerstone of professional tyre service. The Atlas WB49 Wheel Balancer with 3D arm is engineered to provide luxury-grade performance while requiring minimal effort from your technicians. This unit is designed for high-volume garages that demand precision, speed, and reliability in every single cycle.

By integrating advanced digital sensors with a robust mechanical frame, this equipment removes the guesswork from balancing. Whether you are dealing with aftermarket alloy rims or standard steel wheels, the machine provides consistent results that protect your customer vehicles from vibration and premature tyre wear.

Advanced Balancing Technology for Modern Workshops

Modern wheels are becoming increasingly complex. From deep-dish designs to concealed spokes, you need a machine that adapts to these challenges. This model features a sophisticated Split-Weight function that allows you to hide wheel weights behind spokes, maintaining the aesthetic integrity of high-end alloy wheels while ensuring perfect distribution of mass.

The 3D measuring arm is the heart of this machine. It automatically gathers rim data, which reduces the margin for human error and speeds up the setup process. An integrated LED light illuminates the inside of the rim, ensuring that your technicians can apply adhesive weights with surgical precision every time.

Understanding Mechanical Physics and Forces

When a wheel rotates, centrifugal forces act upon any distribution of mass that is not perfectly centred. If a wheel is unbalanced, these forces create vibrations that translate through the suspension and steering components of a vehicle. This machine uses highly sensitive piezoelectric sensors to detect minuscule variances in force between the two planes of the wheel.

The rigid structural design ensures that the machine does not flex under the weight of large, heavy SUV or light truck tyres. By maintaining absolute structural integrity, the sensor array can read the exact unbalance without interference from external vibrations or frame oscillation. This stability in reading is why professionals trust this unit for complex balancing jobs.

Step-by-Step Operational Workflow

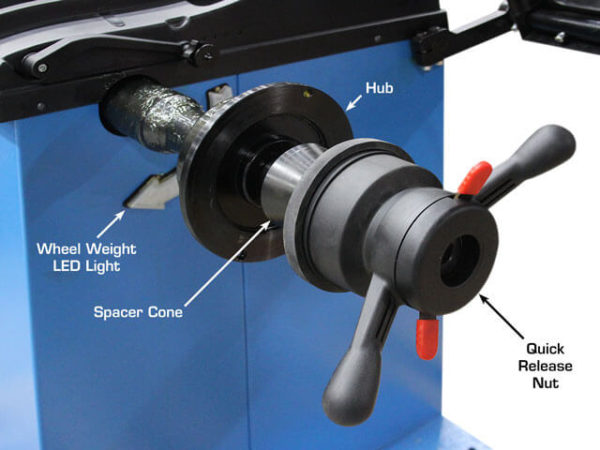

Operating this equipment is designed to be an intuitive experience for your staff. The process begins once the wheel is mounted on the shaft using the appropriate cone and nut assembly. As the hood is lowered, the machine initiates an automatic start sequence.

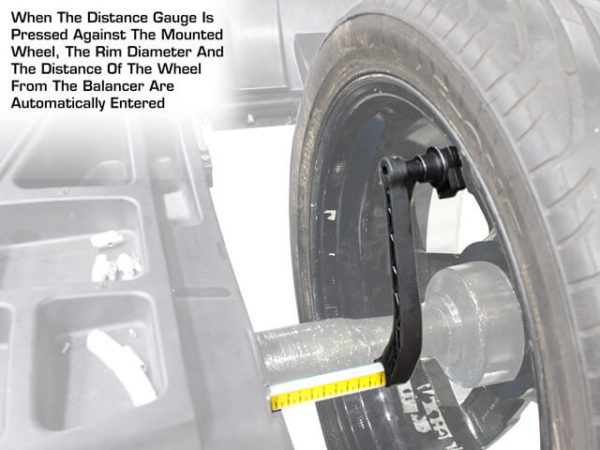

• The operator first uses the 3D arm to register the width and offset of the wheel, which feeds data directly into the computer processor.
• The machine then performs a high-speed spin to measure the dynamic and static unbalance forces acting on the assembly.

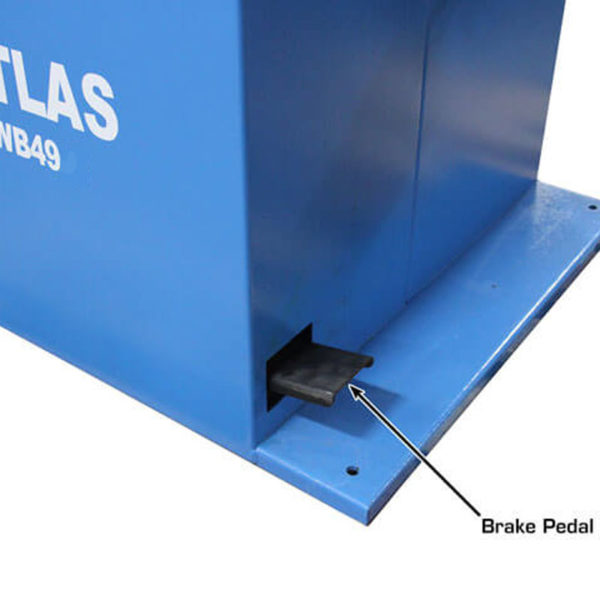

• Once the spin concludes, the automatic brake engages to lock the wheel in the exact position where a weight is required.
• The LED light illuminates the inner surface, allowing the user to place the weights in the precise location identified by the computer.

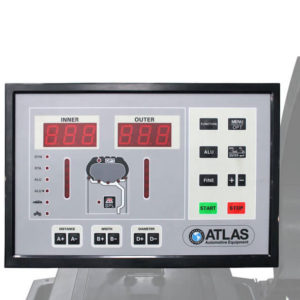

• The operator finishes the cycle by checking the display, which provides a clear confirmation that the wheel is now balanced to within a single gram.

Ergonomic Benefits and Workplace Safety

Manual balancing operations can be taxing on the human body, especially when processing dozens of wheels each day. This unit is built with ergonomics in mind, featuring a large weight tray at an optimal height to reduce the need for constant bending and reaching. The automatic features, such as the powered brake and automated measurement arm, prevent repetitive strain injuries and allow your team to maintain peak productivity throughout a long shift.

Furthermore, the automatic start and stop hood safety system ensures that the wheel is completely enclosed before spinning. This design protects the operator from flying debris and ensures compliance with modern health and safety standards. Because this machine does not require anchor-down installation, it offers the flexibility to be repositioned easily, allowing you to optimise your workshop layout for improved safety and traffic flow.

Commercial ROI and Throughput

In a commercial garage, time is your most valuable currency. Every minute saved on a balancing job represents increased capacity for additional service revenue. By automating the measurement and positioning processes, this model significantly reduces the cycle time per wheel.

You will find that the payback period for this investment is remarkably short when you account for the increase in daily throughput. By preventing the need for re-balancing due to operator error, you also save on consumable costs like adhesive weights and cleaning agents. Protecting customer assets is also a key benefit, as perfectly balanced tyres result in superior customer satisfaction and repeat business.

Technical Specifications

The Atlas WB49 Wheel Balancer with 3D arm is a comprehensive solution for professional tyre shops. Below are the key technical details of this high-performance unit.

Accessories and Enhancements

To get the most out of your purchase, consider exploring our range of compatible accessories. While this machine comes fully equipped, adding high-quality balancing cones or specialised mounting adaptors can broaden your capability. If you also need to handle complex motorcycle tyres, we recommend looking at our Redback motorcycle adaptors for tyre changer to ensure you can service two-wheeled vehicles with the same level of accuracy as four-wheeled ones. Investing in the right accessories ensures your machine remains the most versatile tool in your workshop.

Apply for Finance

Weekly price reflects 3-year finance option on the cheapest product of any variations. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.

CALL NOW TO APPLY | 01527 883 580

APPLY FOR FINANCE ONLINE

This Atlas WB49 Wheel Balancer with 3D arm is a testament to engineering excellence. It provides the perfect balance between high-tech automation and user-friendly operation. By choosing this unit, you are not just buying a machine, you are upgrading the entire capability of your tyre service department. Contact our team today to discuss how this equipment can be integrated into your workspace and start improving your efficiency immediately.

General Info

Atlas Equipment Warranty

Atlas tyre changers & wheel balancers are supplied built, tested and ready for immediate self-installation.

We are therefore pleased to offer our Atlas tyre changer or wheel balancer customers a 12 month parts and labour warranty. This comes as standard and no action is required.

To find out more about Atlas Equipment call our experts now on 01527 883 580.
