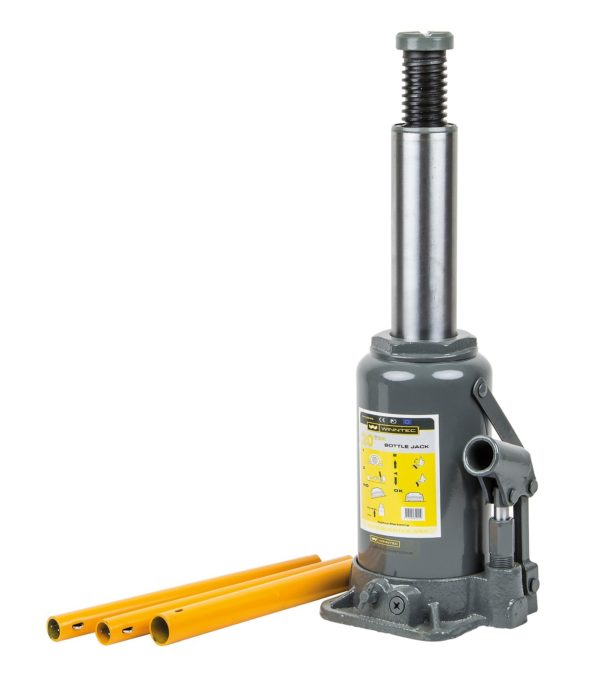

20 Ton Bottle Jack

20 Ton Bottle Jack

Investing in reliable lifting equipment is the cornerstone of any professional automotive workshop or industrial facility. This 20 Ton Bottle Jack provides the necessary force and stability required to handle heavy loads with complete confidence. Engineered to meet the most rigorous European safety standards, this tool serves as a dependable partner for technicians who require precision and power in their daily operations.

The unit utilises a high-quality cast iron base to ensure maximum ground contact and stability during a lift. When you are managing heavy vehicle chassis or industrial machinery, having a stable foundation is essential for preventing structural shifts. This machine is built to handle the rigours of a busy environment where performance cannot be compromised.

Advanced Mechanical Engineering and Physics

At the heart of this equipment lies a sophisticated hydraulic system designed to multiply user input force with incredible efficiency. When you operate the pump handle, you are moving hydraulic fluid into the primary cylinder, which creates the vertical force required to elevate the load. Because the fluid is virtually incompressible, the movement is smooth and highly predictable.

The polished main ram is the critical component that experiences the highest degree of friction and structural stress during a lift. By using a polished finish, the manufacturer has significantly reduced seal wear, ensuring that the tool maintains its pressure integrity over many years of service. Furthermore, the solid chromed pump linkage provides the structural rigidity needed to prevent flex under the extreme pressure of twenty tonnes.

Operational Workflow and User Experience

Operating this tool is an intuitive process that respects the time of the technician. Before beginning, ensure the base plate is placed on a firm and level surface to distribute the weight evenly. Position the saddle under the designated lifting point of the vehicle or load to optimal weight distribution across the cast iron base.

• Close the release valve by turning the handle clockwise until you feel it seat firmly into the closed position.
• Insert the pump handle into the chromed linkage and begin a steady vertical pumping motion to engage the hydraulic mechanism.
• Monitor the load continuously during the lifting process to ensure the equipment remains centred and the load does not shift unexpectedly.
• When the desired height is achieved, you can perform minor adjustments by rotating the twist top screw mechanism for precise positioning.
• To lower the load, slowly and carefully turn the release valve counter-clockwise, allowing the hydraulic fluid to return to the reservoir at a controlled speed.

Safety Compliance and Ergonomic Design

Worker safety is not merely a box to tick but a fundamental requirement for modern business operations. This 20 Ton Bottle Jack includes built-in overload protection, which prevents the user from attempting a lift beyond the rated capacity of the cylinder. This mechanical safeguard prevents catastrophic failure and protects your expensive customer assets from accidental drops or damage.

Using ergonomically designed equipment significantly reduces the risk of musculoskeletal strain for your technicians. The effort required to operate this hydraulic pump is minimised through advanced leverage geometry, allowing staff to complete lifting tasks without excessive physical exertion. By reducing the physical toll on your workforce, you improve long-term staff retention and decrease the likelihood of work-related injury claims.

Commercial Efficiency and Workshop Throughput

Every minute spent struggling with inferior lifting tools is a minute stolen from your daily revenue. When your workshop is equipped with high-performance machinery, your team can move from one task to the next with greater fluidity. This efficiency translates directly into a higher number of billable hours per week.

Consider the financial impact of faster cycle times. By saving even five minutes per job, you can increase your total daily output without needing to hire additional staff. This tool is designed to work in both horizontal and vertical positions, giving your technicians the flexibility to solve complex mechanical problems where standard jacks would fail. This versatility makes the initial investment pay for itself rapidly through increased volume and reduced downtime.

Technical Specifications

This unit is designed to balance compact storage requirements with high-capacity performance. Below are the technical parameters defining the capabilities of this model.

Expanding Your Capabilities

While this tool is highly capable on its own, many workshops choose to supplement their lifting bay with additional support stands to ensure safe working conditions during long-term repairs. Maintaining a safe workspace requires that the load is never supported by the hydraulic ram alone for extended periods. You might consider looking at our range of workshop accessories to ensure your setup is fully optimised for safety and compliance.

Proper maintenance of your hydraulic equipment is simple but necessary. Ensure you keep the ram clean of dirt and debris to protect the seals. We recommend that you check for fluid leaks regularly to ensure the 20 Ton Bottle Jack is always ready for service. With a 3 year provided by Winntec, you have the peace of mind that your investment is protected by a brand known for engineering excellence and long-lasting durability.

Apply for Finance

We offer flexible payment terms to help you manage your capital expenditure more effectively. You can apply for finance today to secure this essential equipment for your workshop without affecting your immediate cash flow.

Ordering your new equipment is straightforward. Please allow 3 to 5 working days for delivery to your location. Ensure your facility is ready to receive the shipment so that your team can begin using this powerful tool as soon as it arrives. Should you have any questions regarding the suitability of this jack for your specific lifting requirements, our expert team is available to assist you in making the right choice for your business.

General Info

Winntec products carry a 3 Year Warranty, which covers faulty materials, workmanship, and normal wear and tear. The warranty is only valid if the necessary recommendations on safety, operation, service, and routine maintenance have been followed. For further details please click here (opens in new window): See pdf

For further Winntec warranty details please click here.

Note: Consumable items such as wheels, castors, circlips, rubber pads, and handle grips etc. are not covered by the Winntec 3 Year Warranty, as the replacement intervals for these consumables depend on the extent to which the product is used and how well it is maintained. They can be considered as equivalent to brake pads, wipers, bulbs etc. on a new car.
