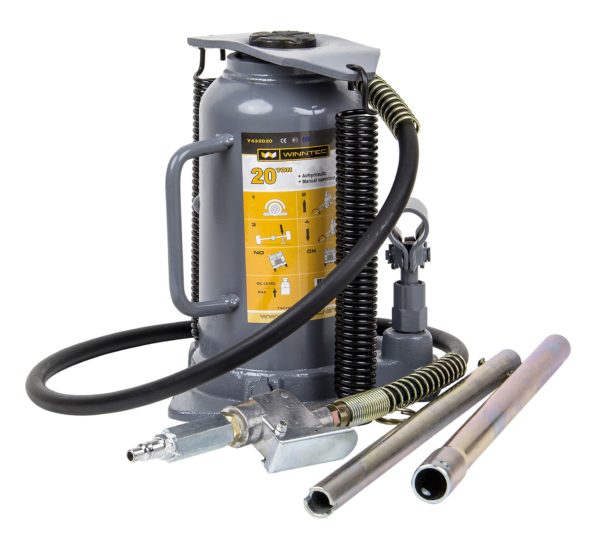

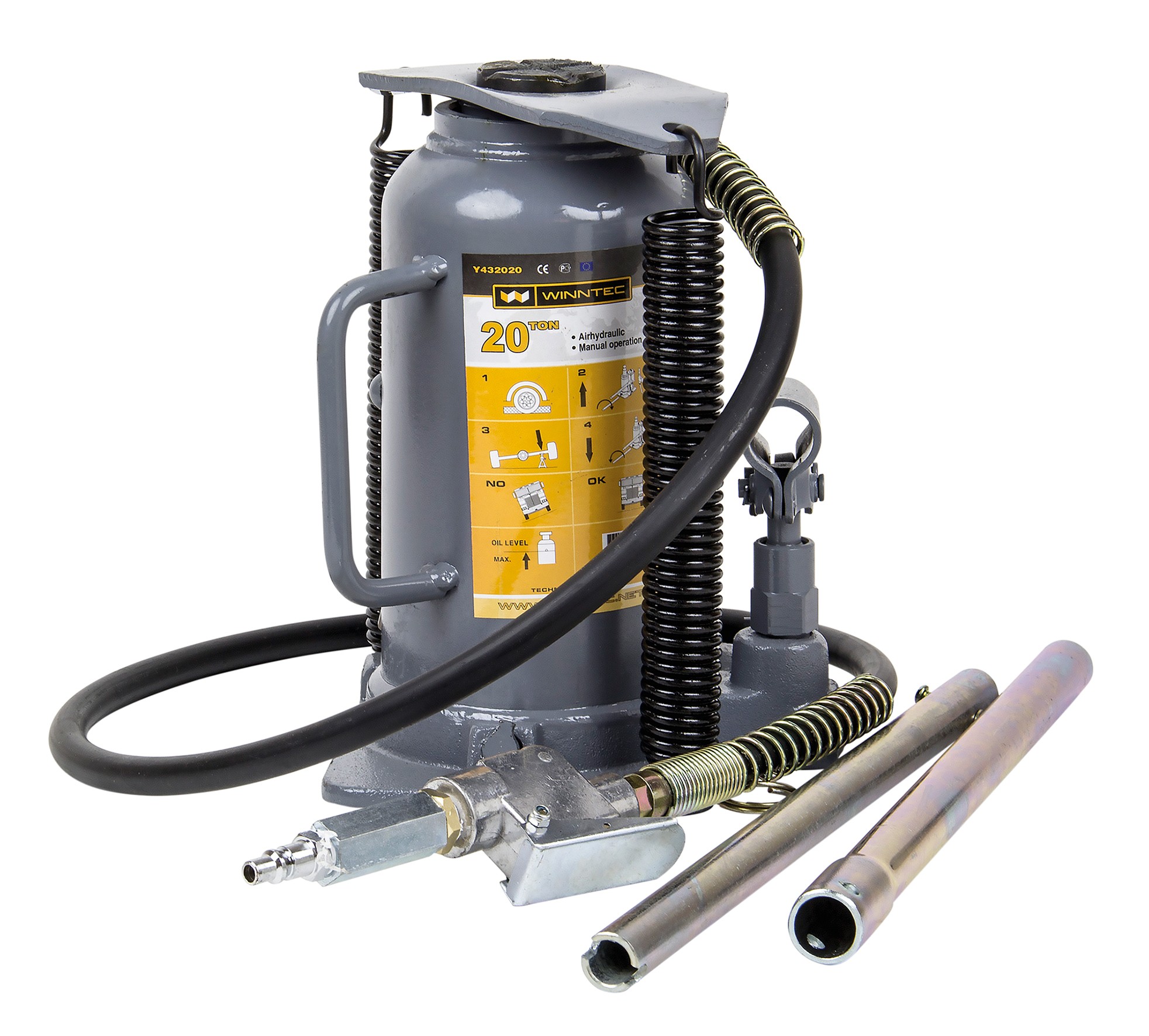

20 Ton Air Bottle Jack

20 Ton Air Bottle Jack

When you operate in a high pressure automotive or industrial environment, the reliability of your lifting equipment is non-negotiable. This 20 Ton Air Bottle Jack represents the pinnacle of pneumatic lifting technology, designed specifically for professionals who demand speed, consistency, and absolute structural integrity. By combining traditional hydraulic force with an advanced high speed aluminium air motor, this unit streamlines heavy lifting tasks while reducing the physical strain typically associated with manual bottle jacks.

Every element of this machine has been engineered to provide long term service in the most demanding workshop conditions. From the precision treated cylinder walls to the chrome plated pistons, the internal architecture is built to withstand extreme pressure without degradation. Choosing the right equipment for your maintenance bay is a decision that impacts both your immediate operational throughput and your long term health and safety standards.

Advanced Engineering and Construction

The structural design focuses on longevity and resistance to the harsh conditions of a busy garage. The welded base provides a stable foundation that prevents tipping or lateral movement when lifting heavy vehicles or industrial machinery.

• The integrated high speed aluminium air motor allows for rapid lifting cycles which significantly reduces the amount of time spent on vehicle preparation or maintenance procedures.
• Specially treated cylinder walls offer superior resistance to corrosion and wear which ensures that the hydraulic seal remains intact even after thousands of lift cycles.
• High quality chrome pistons are utilised throughout the assembly to provide a smooth surface finish that minimises friction and protects internal seals from premature failure.
• The base plate construction is reinforced to distribute load weight evenly across the shop floor which helps in maintaining stability even on uneven concrete surfaces.
• Sophisticated filters are built into the pneumatic system to trap debris and prevent contamination from entering the hydraulic fluid which is the most common cause of premature jack failure.

Mechanical Physics and Load Management

At the core of this machine lies a sophisticated hydraulic circuit that leverages Pascal’s principle to multiply force. By introducing compressed air to the pump mechanism, the operator initiates a rapid, controlled expansion of the hydraulic fluid against the primary piston. This conversion of pneumatic energy into mechanical work allows for the effortless elevation of significant tonnage. The internal extension screw adds an extra layer of versatility, permitting fine adjustments to the contact point before the primary hydraulic lift commences. This ensures that the load is engaged safely and securely every single time.

Operational Workflow for Technicians

Operating this equipment is a straightforward process that minimises user error. First, the technician positions the device under the reinforced lifting point of the vehicle or load. The extension screw is then manually wound up to make contact, reducing the dead air space the hydraulics need to move. Once connected to the shop air supply, the user simply activates the air control valve. The high speed motor handles the bulk of the exertion, allowing the technician to monitor the lift height and stability without the need for repetitive pumping motions.

Ergonomics and Workplace Safety

Manual lifting tools are often the primary cause of musculoskeletal injuries in a workshop setting. By incorporating a pneumatic motor, this equipment removes the requirement for the operator to crouch and perform repetitive manual pumping. This promotes a safer working posture and significantly reduces the fatigue that accumulates over a standard eight hour shift. Safety is further enhanced by the robust construction, which includes overload protection mechanisms that prevent the machine from exceeding its rated 20 ton capacity during operation.

Commercial ROI and Throughput

Investing in superior lifting technology is a direct play for efficiency. In a professional garage, every minute saved on vehicle setup translates directly into increased billable hours. The speed of this air operated system allows technicians to reach the undercarriage quickly and safely, facilitating faster wheel changes, suspension repairs, or chassis inspections. Over the course of a year, the marginal gains in speed provide a substantial return on investment. Furthermore, the 3 year Winntec protects your capital expenditure, ensuring that your tools remain operational assets rather than maintenance liabilities.

Key Applications and Materials

This versatile tool is indispensable across multiple sectors. It excels in commercial vehicle maintenance, agricultural machinery repair, and heavy construction equipment servicing. Whether you are dealing with steel frames, cast iron engine blocks, or heavy duty axle assemblies, the 20 Ton Air Bottle Jack delivers consistent results. To further enhance your workshop capabilities, consider browsing our specialised workshop adaptors to ensure compatibility with a broader range of vehicle types and configurations.

Technical Specifications

Apply for Finance

We offer flexible payment solutions for our professional grade equipment to help you manage your business cash flow effectively. You can learn more about our simple approval process by visiting our online finance portal to submit your application today.

Reliability remains the hallmark of this model. The combination of industrial grade materials and smart pneumatic design makes it a standard for any serious mechanical operation. We ensure all orders are processed with care and you can expect delivery of your new unit within 3 to 5 working days. Elevate your workshop standards and ensure that your team is equipped with the most efficient tools available in the industry today.

General Info

Winntec products carry a 3 Year Warranty, which covers faulty materials, workmanship, and normal wear and tear. The warranty is only valid if the necessary recommendations on safety, operation, service, and routine maintenance have been followed. For further details please click here (opens in new window): See pdf

For further Winntec warranty details please click here.

Note: Consumable items such as wheels, castors, circlips, rubber pads, and handle grips etc. are not covered by the Winntec 3 Year Warranty, as the replacement intervals for these consumables depend on the extent to which the product is used and how well it is maintained. They can be considered as equivalent to brake pads, wipers, bulbs etc. on a new car.
