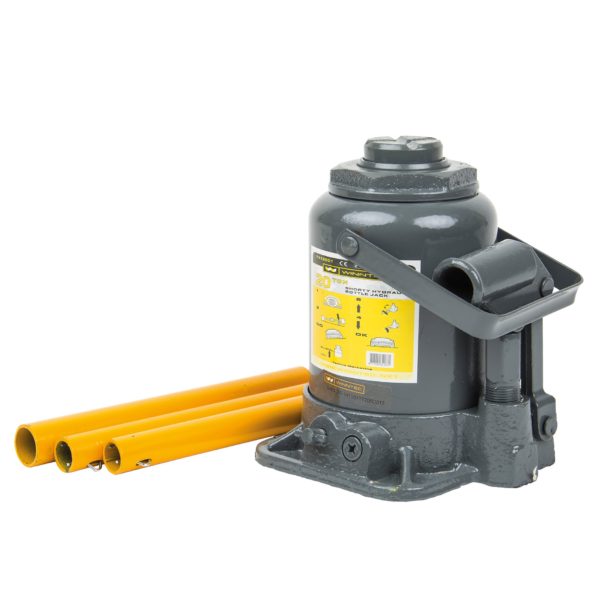

Winntec Low Entry 20 Ton Bottle Jack (Y412001)

Winntec Low Entry 20 Ton Bottle Jack (Y412001)

When professional mechanics and industrial engineers require uncompromising lifting performance, they turn to equipment engineered for precision and reliability. The Winntec Low Entry 20 Ton Bottle Jack (Y412001) represents the pinnacle of hydraulic lifting technology, blending compact dimensions with an immense capacity to handle heavy loads with total ease. Designed to meet the most rigorous European safety standards, this unit provides the confidence needed for intensive garage environments.

Whether you are maintaining heavy commercial vehicles, agricultural machinery, or industrial equipment, this model serves as a cornerstone of your workshop safety. Its construction focuses on durability, utilising high grade cast iron and polished components that withstand the test of time. Investing in this machinery means choosing a tool that balances modern engineering with the raw power required for demanding daily tasks.

Engineered for Mechanical Excellence

The core of this device relies on the physics of hydraulic pressure to convert minimal manual effort into substantial vertical lift. By pumping the handle, the internal piston forces oil through a high pressure system that generates the force necessary to raise a twenty tonne load. The structural integrity of the cast iron base ensures that this massive force is distributed evenly across the floor surface, preventing instability or structural deformation during the lift.

This model excels in its mechanical design through several key features that ensure a smooth operation:

• The polished main ram provides a low friction surface that extends the life of the internal seals and prevents premature fluid leakage.
• The solid chromed pump linkage offers exceptional resistance to corrosion and bending even when the user applies maximum force to the handle.
• Overload protection systems are integrated directly into the hydraulic circuit to prevent internal pressure from exceeding safe limits, protecting both the operator and the load.
• The ability to operate in both horizontal and vertical positions adds significant versatility for technicians who need to maneuver the jack in tight spaces or beneath complex chassis layouts.

Step by Step Operational Workflow

Achieving a safe and efficient lift requires a methodical approach that ensures the equipment is perfectly positioned. First, the technician must locate a structural lifting point on the vehicle or machine, ensuring the surface is level and capable of supporting the weight. The operator then adjusts the screw extension to bridge the gap between the base and the contact point, minimising the distance the hydraulic ram needs to travel under load.

Once positioned, the operator cycles the pump handle with controlled, smooth strokes to actuate the hydraulic system. Because of the precision engineering of the pump mechanism, the lift remains stable and predictable throughout the entire cycle. After reaching the desired height, the safety lock should be engaged, and the load must be supported by suitable jack stands to ensure a secure environment for any work being performed.

Ergonomic Safety and Compliance

In a busy commercial workshop, the health and safety of the workforce remain paramount. Traditional lifting methods often require excessive physical exertion that can lead to long term musculoskeletal injuries among staff. This model is designed to minimise these risks by offering a highly efficient leverage ratio, meaning the technician achieves the lift with far less physical strain compared to inferior alternatives.

Furthermore, the built-in safety features serve to eliminate human error during the lifting process. By adhering to modern European standards, this unit guarantees that the equipment performs reliably every time it is deployed. Using such machinery allows a workshop to maintain strict compliance with health and safety regulations, fostering a culture of professional responsibility that protects both the staff and the reputation of the business.

Driving Commercial ROI and Workshop Throughput

Every minute spent struggling with unreliable equipment or re-positioning a poorly designed jack represents a direct loss in potential revenue. A high quality lifting solution significantly enhances daily throughput by allowing technicians to complete setup and lifting tasks rapidly. The speed and predictability of this unit translate into more billable hours per week for the garage owner.

Beyond immediate time savings, this machine protects valuable customer assets by preventing accidental slips or structural damage caused by low quality jacks. When technicians can rely on their tools to perform under pressure, they operate with greater focus and efficiency. The rapid payback period of this equipment makes it an essential acquisition for any growing automotive business that refuses to compromise on quality or output.

Accessories and Versatility

While this unit is a complete solution, many professionals find that adding specific accessories can enhance utility. We offer a range of support equipment to complement your lifting station. You might consider exploring our specialised lifting adaptors or base extensions that further increase the adaptability of your workshop floor. These additions allow the operator to tackle a wider variety of vehicle geometries without needing additional equipment.

Technical Specifications

Apply for Finance

We make it easier for you to equip your workshop with the latest tools. If you are interested in spreading the cost of this investment, please apply for finance today to view our flexible payment plans.

Final Considerations for Your Workshop

Choosing the right equipment is an investment in the long term success of your operations. With a 3 year provided as standard, you can rest assured that this investment is protected. The Winntec Low Entry 20 Ton Bottle Jack (Y412001) represents the ideal combination of performance, safety, and durability, ensuring that your team is always ready for the next challenge. Elevate your workshop standards by upgrading your lifting infrastructure with a name that is trusted by professionals throughout the industry.

General Info

Winntec products carry a 3 Year Warranty, which covers faulty materials, workmanship, and normal wear and tear. The warranty is only valid if the necessary recommendations on safety, operation, service, and routine maintenance have been followed. For further details please click here (opens in new window): See pdf

For further Winntec warranty details please click here.

Note: Consumable items such as wheels, castors, circlips, rubber pads, and handle grips etc. are not covered by the Winntec 3 Year Warranty, as the replacement intervals for these consumables depend on the extent to which the product is used and how well it is maintained. They can be considered as equivalent to brake pads, wipers, bulbs etc. on a new car.
