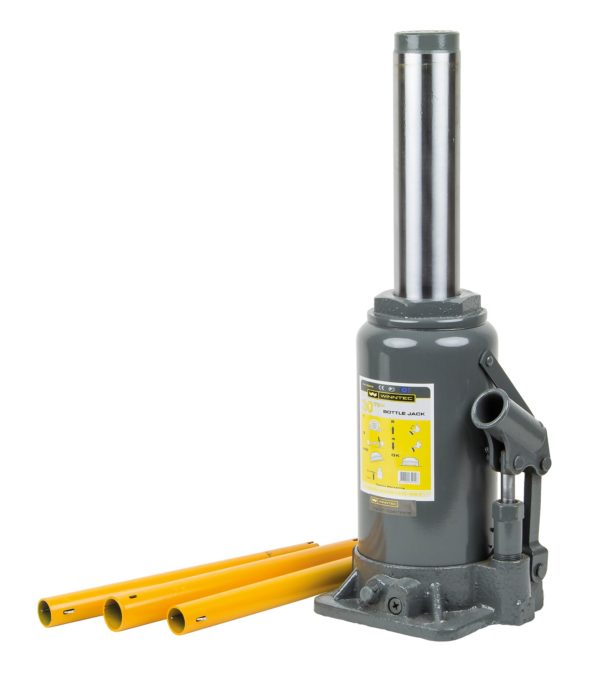

Winntec 30 Ton Bottle Jack

Winntec 30 Ton Bottle Jack

When your workshop demands uncompromising lifting power, this high capacity hydraulic tool delivers consistent performance. Designed for heavy duty automotive and industrial environments, the Winntec 30 Ton Bottle Jack provides the stability and strength required for handling large scale machinery. With its European design pedigree, this unit represents a significant upgrade over standard lifting solutions, ensuring that every lift is executed with precision and safety at the forefront of the process.

Engineered to meet the rigorous demands of modern garages, the build quality reflects a commitment to long term reliability. Whether you are dealing with HGV maintenance, agricultural vehicle repairs, or general heavy plant equipment, this device offers the resilience required to manage immense weight without structural fatigue. Its compact footprint belies the massive force it generates, making it a versatile addition to any professional maintenance facility.

Engineered for Mechanical Excellence

The core of this hydraulic unit relies on advanced mechanical physics to convert manual pump effort into controlled, massive lifting force. By utilising a polished main ram, the internal friction is minimised, ensuring that the movement remains smooth even under full load. The solid chromed pump linkage provides the structural integrity needed to withstand the high pressure required to support thirty tonnes of mass.

The base is constructed from premium cast iron, which offers superior vibration dampening and inherent structural stability. By distributing the load across a generous surface area, the base plate prevents the equipment from sinking into soft surfaces or sliding during the actuation cycle. This level of design foresight ensures that the weight is effectively transferred to the ground, maintaining a stable equilibrium for the load being suspended.

Operational Workflow and Safety Protocols

Operating this equipment requires a systematic approach to ensure both operator safety and vehicle protection. Before commencing any lift, technicians should first place the unit on a level, solid surface to ensure a stable foundation. You must verify that the load is positioned directly over the centre of the saddle, as this prevents off-axis stress on the ram, which could otherwise compromise the integrity of the hydraulic seals.

• The user begins by ensuring the release valve is fully closed to allow for hydraulic pressure build up.
• The pump handle is inserted into the solid chromed linkage and operated with steady, rhythmic strokes to initiate the ascent.
• Safety is enhanced by the integrated overload protection mechanism, which prevents the user from attempting to lift a load exceeding the maximum capacity.
• Once the desired height is achieved, the load must always be secured with suitable support stands before any physical work under the vehicle begins.
• When the task is complete, the release valve should be turned slowly and carefully to ensure the descent is controlled and gradual.

Ergonomic Benefits and Injury Prevention

In a high paced commercial workshop, musculoskeletal health is paramount for long term productivity. This piece of equipment is designed to minimise the physical strain typically associated with heavy lifting tasks. The pump mechanism is engineered to require minimal manual effort, reducing the risk of repetitive strain injuries for the technician.

By utilising this heavy duty solution, workshop managers can effectively mitigate the hazards associated with makeshift or underspecified lifting tools. Modern safety regulations mandate that all lifting gear must be rigorously tested and certified. Because this model adheres to the latest European standards, it provides peace of mind that the equipment will not experience sudden failure, thereby protecting the user and the expensive customer assets being serviced.

Commercial Efficiency and Workshop Throughput

Investing in high quality lifting equipment is not merely a capital expense, but a strategic move toward improving overall garage throughput. When a technician can rely on their tools to perform flawlessly on the first attempt, the time spent on vehicle preparation is significantly reduced. Each minute saved on setup translates into an increased number of vehicles serviced daily, directly impacting the bottom line of the business.

Furthermore, this tool is designed to work in both vertical and horizontal positions. This versatility is critical when dealing with complex machinery or constrained spaces where standard lifting points are inaccessible. By reducing the complexity of the repair process, this equipment minimises the risk of accidental damage to sensitive vehicle components, preventing costly rework and maintaining high customer satisfaction levels.

Enhancing Your Setup with Reliable Add-ons

While this unit is highly effective on its own, its utility can be expanded through the use of specific shop accessories. Proper support is non-negotiable, and we recommend pairing this tool with our high capacity axle stands. If you are integrating this into a larger tyre service workflow, you may also benefit from our range of redback motorcycle adaptors for tyre changer setups to keep your shop floor equipment unified in quality. Having the right peripheral equipment ensures that once the vehicle is raised, it remains supported by an ecosystem of professional grade tools.

Technical Specifications

Apply for Finance

We understand that equipping a professional workshop requires a significant investment. You can easily manage your cash flow by choosing our flexible financing options. To begin your application process or to review the available credit terms, please visit our Apply for Finance page. Our team is dedicated to helping you secure the tools you need today, with payment structures that support your ongoing business growth.

With a comprehensive 3 year , this purchase is backed by a commitment to durability and excellence. We ensure that our logistics partners are prepared for timely arrivals, so please allow 3-5 working days for delivery to your workshop. Equip your facility with the professional standard it deserves and experience the difference that superior design makes to your daily operations.

General Info

Winntec products carry a 3 Year Warranty, which covers faulty materials, workmanship, and normal wear and tear. The warranty is only valid if the necessary recommendations on safety, operation, service, and routine maintenance have been followed. For further details please click here (opens in new window): See pdf

For further Winntec warranty details please click here.

Note: Consumable items such as wheels, castors, circlips, rubber pads, and handle grips etc. are not covered by the Winntec 3 Year Warranty, as the replacement intervals for these consumables depend on the extent to which the product is used and how well it is maintained. They can be considered as equivalent to brake pads, wipers, bulbs etc. on a new car.
