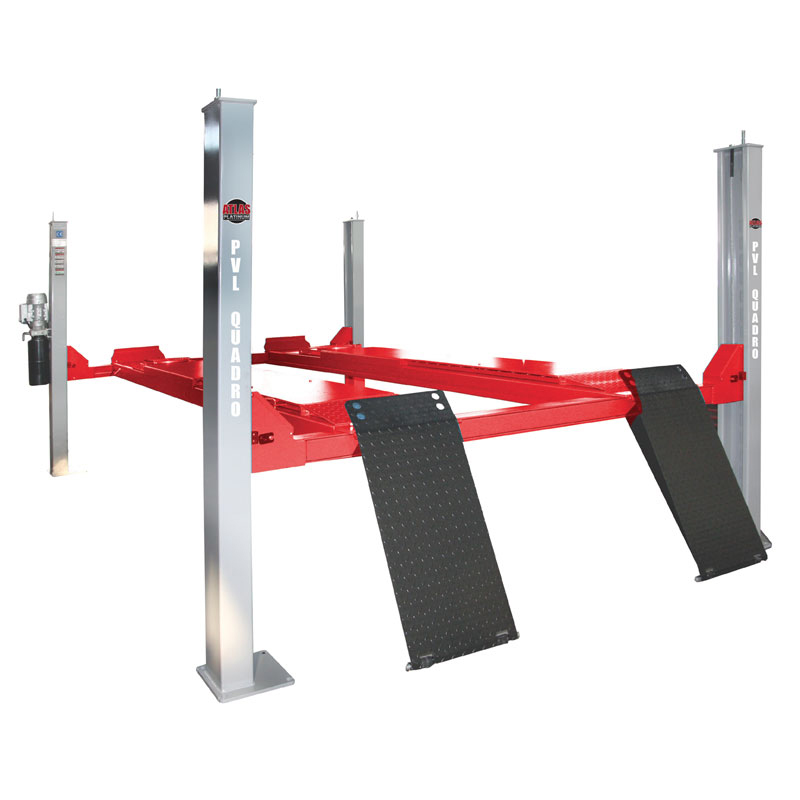

The PVL Quadro is a premium quality 4 post vehicle lift with integral alignment platform, and is one of the very latest additions to the Atlas Platinum range.
Available in two platform lengths 4.5m (with a 4000kg lifting capacity) and 4.8m (4200kg capacity), featuring cable synchronization and an automatically-engaging locking facility, this is the perfect lift for wheel alignment applications.
We are delighted to be able to offer Atlas Platinum vehicle lifts through Tyre Bay Direct for the first time.
The design of the PVL Quadro Four Post Wheel Alignment Lift allows it to fit into many existing recesses, reducing the need for additional building work. Complete operational efficiency is ensured with built-in rear slip plates and recesses for the turn plates, which are supplied as standard.
Steel cables provide the mechanical synchronisation for increased strength and operational efficiency, and safety is assured via a mechanical lock with automatic engagement and air-operated release. A pressure overload valve in the power unit, together with a 24V safety control ensure this vehicle lift is fit for use in any workshop.
The PVL Quadro lift will work seamlessly with a wide range of wheel alignment rigs but it has been specifically designed with the Atlas Platinum alignment range, particularly, the Atlas Platinum PWA-3D aligner in mind.
- Built-in rear slip plates and recesses for the turn plates
- Steel cables for mechanical synchronisation
- Mechanical lock with automatic engagement
- Air-operated lock release
- Pressure overload valve
- 24V safety control
- 2 year parts and labour warranty
*Weekly price reflects 3-year finance option. The total value of the purchase must be over £1,000 (ex.VAT) to qualify for finance. Call today on 01527 883 580 to begin your application.CALL NOW TO APPLY | 01527 883 580 APPLY FOR FINANCE ONLINE
Why Choose Tyre Bay Direct For Your Garage Equipment
- Over 20 Years Of Experience
- UK's Leading Supplier Of Garage Equipment
- UK Agents for Atlas Automotive Equipment
- Superb Aftercare And Support Available
- Buy Now and Pay Later With PayPal
|PVL Quadro||PVL Quadro LP|
|Raised Time:||60 seconds||60 seconds|
|Noise Level:||80 dB (A)/1m||80 dB (A)/1m|
|Rated Pneumatic Pressure:||6bar–8bar||6bar–8bar|

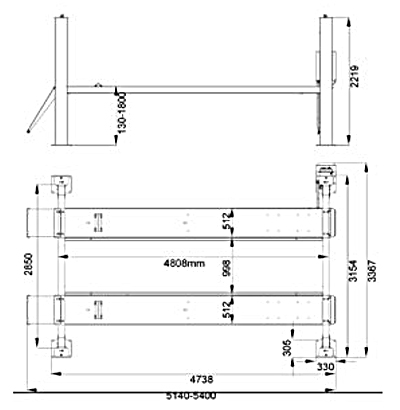

|PVL Quadro||PVL Quadro LP|
|Max. Raised Height:||1800mm||1800mm|
|Min. Lowered Height:||130mm||130mm|
|Width Between Columns:||2850mm||2850mm|
|Choose a Lift Length||
4.5m Platform, 4.8m Platform
